Priced at $39,950.00*

*Destination and preparation not included

*Optional equipment displayed

*Optional equipment displayed

STANDARD FEATURES

  •  1.5 4 Cyl Turbo
  •  6 Speed Auto Trans
  •  Heated Seats
  •  Heat
  •  Machine Faced 19″ Wheels
  •  Bluetooth Enabled Sound System
  •  Electric Power Steering

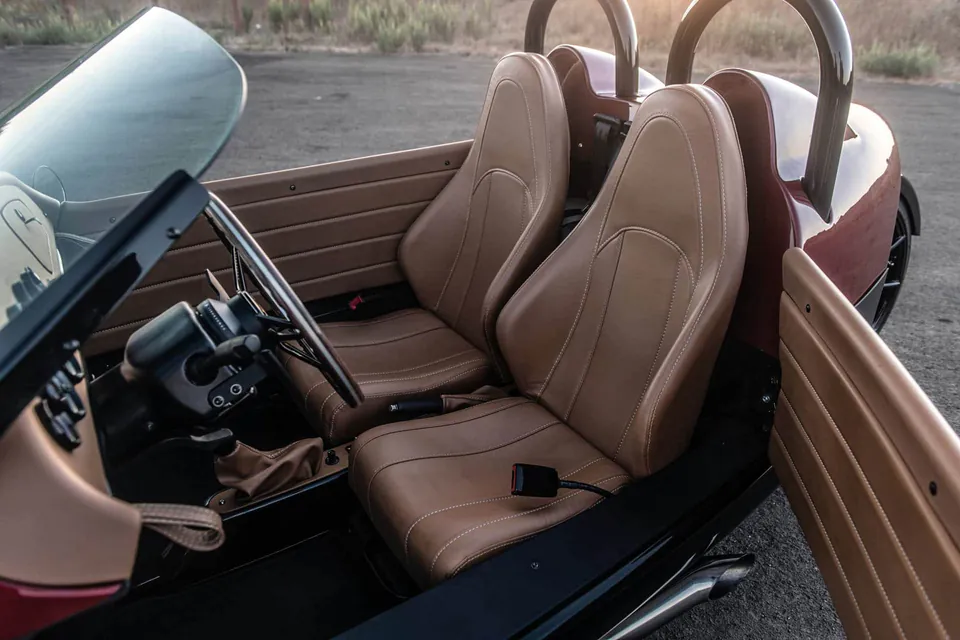

  • Tan V-Tex Upholstery
  •  LED Headlights, Turn Signals, Brake Lights
  •  Dual Servo Brakes with ABS
  •  Cruise Control
  •  Traction Control
  •  Wooden Steering Wheel
  • 2 Year Roadside Assistance
  • 2 Year Limited Warranty

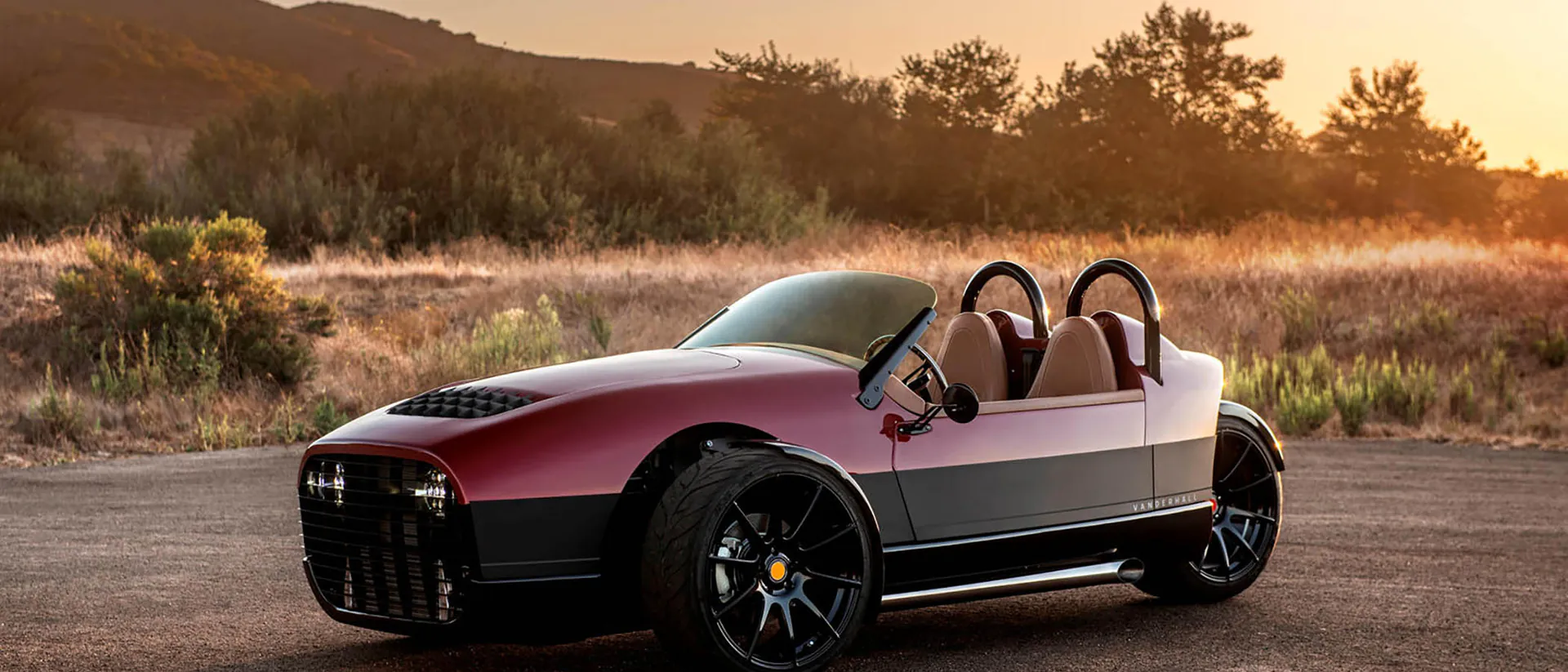

The Vanderhall Carmel brings more luxury and convenience to the Vanderhall lineup. With front entry doors, a wider cabin and provisions to accommodate an optional removable cap shade, the Carmel promises additional class and comfort for your journey.

Register Interest

Request more info about the Vanderhall Carmel.

Carmel

$1,000.00

Reserve yours for $1,000 and be one of the first to experience the Vanderhall Carmel. A representative will contact you shortly after you submit the form.



Choose a Dealer *

Category:

Billing details

Additional information

Your order

Product
Quantity
Total
Cart Subtotal $0.00
Order Total $0.00
  • Please enter your credit card details:

Features

Engine
Notable engine features include:
• Gasoline-powered
• Dual Overhead Cam (DOHC) design
• Inline four-cylinder (I-4) configuration
• Variable Valve Timing (VVT)
• Turbo-charged
• Direct injection











Engine
Notable engine features include:
• Gasoline-powered
• Dual Overhead Cam (DOHC) design
• Inline four-cylinder (I-4) configuration
• Variable Valve Timing (VVT)
• Turbo-charged
• Direct injection







Suspension:
F1 inspired push-rod suspension allows for a compact
suspension footprint and progressive movement.

Suspension:
F1 inspired push-rod suspension allows for a compact
suspension footprint and progressive movement.









Frame:
Vanderhall has designed and patented this new
advanced method of constructing an all aluminium
uni-body frame.  This technology allows all Vanderhall
products to be constructed with very high accuracy.

Frame:
Vanderhall has designed and patented this new advanced method of constructing an all aluminium uni-body frame. This technology allows all Vanderhall products to be constructed with very high accuracy.

Specifications

GENERAL
Passengers: 2
Body Construction: Composite
Exterior Colors: Silver Vintage Metallic, Poseidon Blue Metallic
Place of Manufacture: Provo, Utah

STANDARD EQUIPMENT
Convenience: Heated seats, dual-vent heating system, front entry doors
Safety: Dual servo-brakes with ABS, traction control, electric power steering
Interior Material: Tan V-Tex synthetic upholstery
Audio: Two channel, amplifier – with Bluetooth connectivity
Lighting: LED (headlights, turn signals, brake lights)

ENGINE
Location: Front
Alignment: Transverse
Manufacturer: General Motors
Engine Code: LFV
Cylinders: 4
Configuration: Inline
Displacement: 1.5 liters (1490cc)
Valves: 16
Bore x Stroke: 74.0 x 86.6mm
Bore Center: 81mm
Compression: 10:1
Redline: 6,500 rpm
Aspiration: Turbocharged
Horsepower: 194 @ 5700 rpm
Torque: 203 lb-ft @ 2,450 rpm
Block: Aluminum
Sump Design: Wet
Fuel Supply: Direct Fuel injection
Recommended Fuel: 91 octane
Catalytic converter: Yes

TRANSMISSION
Type: 6T40 (MNH)
Gears: 6
Driven Wheels: Front
Top Gear Ratio: .75
Clutch: Automatic torque converter
Final Gear Ratio: 3.87

PERFORMANCE*
0-60 mph: 4.5 seconds
Top Speed: 138 mph
Lateral Cornering Stability: .95 G
Power-to-Weight Ratio: 7.9 lb/hp

CHASSIS
Suspension, Front: Pushrod, coil-over hydraulic shocks (Vanderhall)
Suspension, Rear: Single-sided swingarm, coil-over hydraulic shock (Vanderhall)
Base Wheels: 19x8.5 Front, 19x11 Rear
Base Tires: 235/35ZR19 Front, 275/35ZR19 Rear
Brake Calipers: Single Piston
Brake Rotor, Front 296mm
Brake Rotor, Rear: 278mm
Steering: GM rack-and-pinion, electronic assist

BODY
Base Platform: Vanderhall Mono Aluminum
Bodywork Material: Composite
Cargo Capacity: 83 liters

DIMENSIONS, WEIGHT & CAPACITIES
Length: 3700mm
Overall Width: 1750mm
Track, Front: 1500mm
Height: 1140mm
Wheelbase: 2575mm
Weight Distribution: 75/25
Ground Clearance: 125mm
Dry Weight: 1,505 lbs.
Curb Weight: 1595 lbs.
Load capacity: 500 lbs.
Fuel Capacity: 9.5 gal.



*Actual results may vary depending on options, driving conditions, driving habits, and your vehicle’s condition. Verification of these results should not be attempted. Always drive safely and obey all traffic laws.
